LAUFEN Palace Close Coupled Back To Wall Back Inlet S&P Trap Toilet Suite with Soft Close Seat White (4 Star) from Reece

LAUFEN Palace

At the heart of Swiss bathroom culture since 1892, LAUFEN's innovative approach embraces outstanding quality, superb design and precise engineering. Designed by Andreas Dimitriadis, the LAUFEN Palace Close Coupled Back to Wall Toilet Suite with bottom water inlet embodies a timeless, classic design for the future of bathrooms.

Height	895 mm
Projection	700 mm
P Trap Setout	180 mm
S Trap Max Setout	255 mm
S Trap Min Setout	155 mm
Weight of Pan	37 kg

Designer	Andreas Dimitriadis
Recommended Use	Domestic, Hotel & Commercial
Rim Configuration	Box Rim
Toilet Seat	Soft Close
Trend	Day Spa

Colour	White
Finish	Gloss (Laufen Clean Coat)
Finish Information	Laufen Clean Coat - An advanced abrasion resistant finish, reducing cleaning effort, increasing product life and improving hygiene
Toilet Suite Colour	White

Cistern Material	Vitreous China
Pan Material	Vitreous China

Cistern Fixing	Cistern bolted directly to the wall
Inlet Valve Recommended Max Pressure	500 kPa
Pan Outlet Type	P Trap/S Trap using conversion bend (supplied)
Pan Fixing	Screwed to the floor using fixing bolts provided
Water Inlet Position	Back Inlet

LAUFEN Palace Close Coupled Back To Wall Back Inlet S&P Trap Toilet Suite with Soft Close Seat White (4 Star)

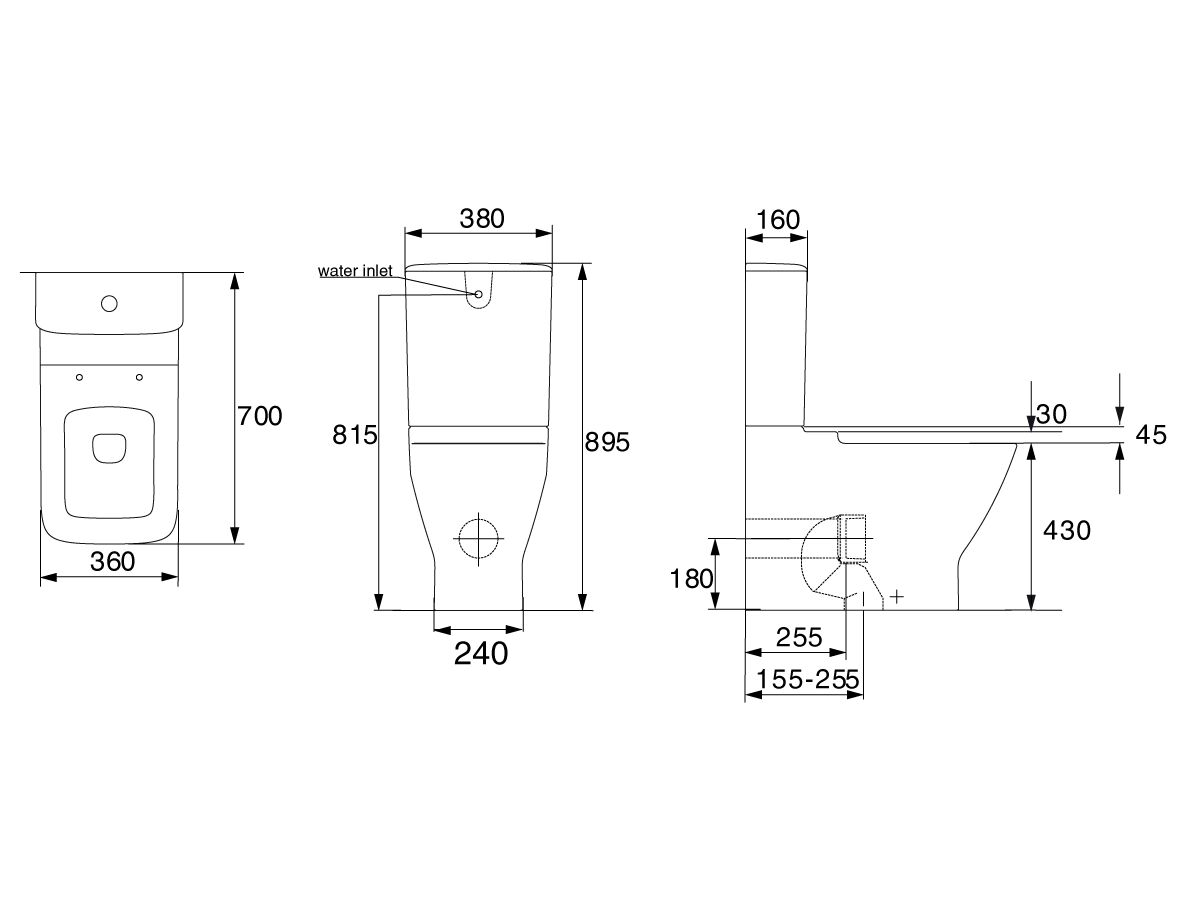

Size and Dimensions

Warranty

Brochures

Specification, Manuals & Installation

Warranty

Warranty - Domestic Use	15 Years
Spare Parts and Labour	12 Months
Warranty - Commercial Use	12 Months
Warranty Information	For full warranty terms and conditions please refer to the LAUFEN Warranty document
