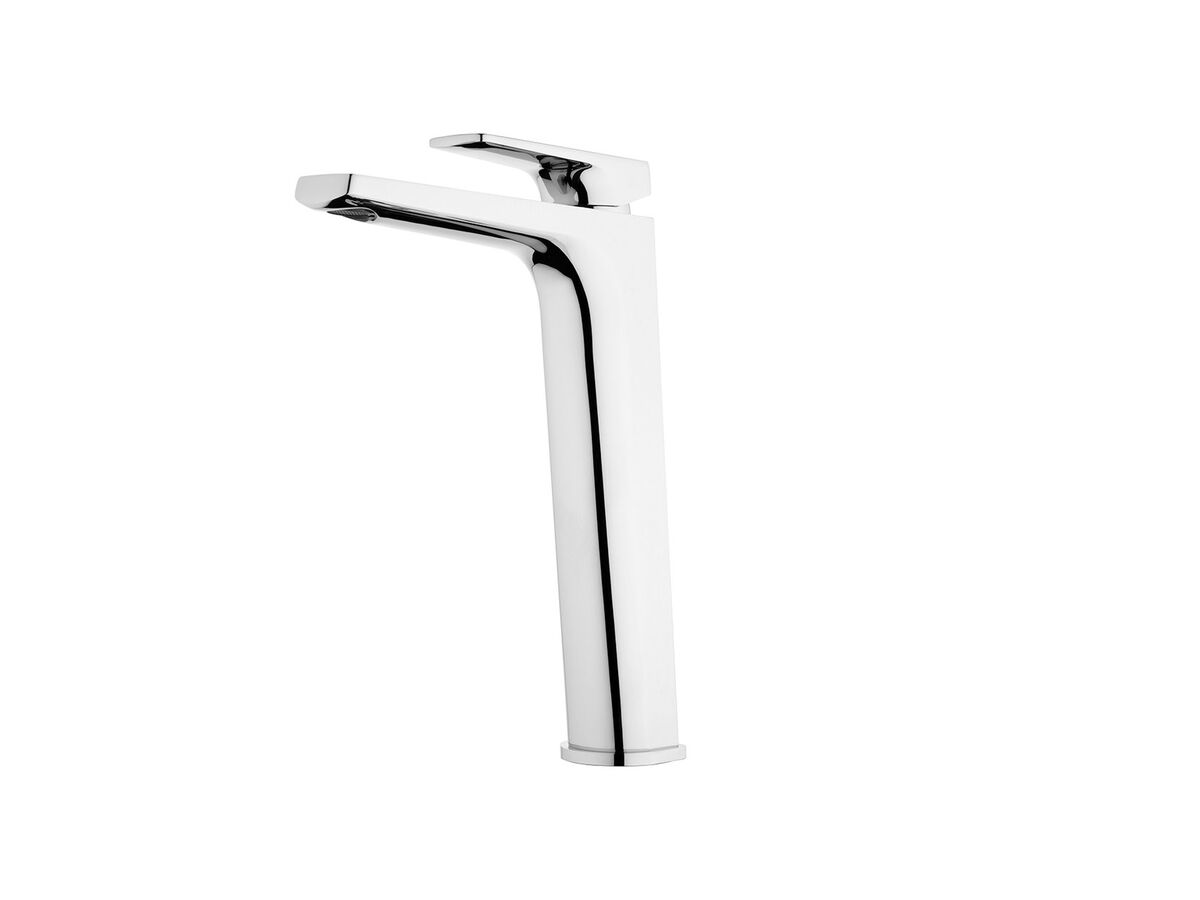

Tide Hi Rise Basin Mixer Chrome (4 Star)
Product code:
2217435
View Product Specifications
Product Specifications
Warranty Information
Documents and Downloads
Back

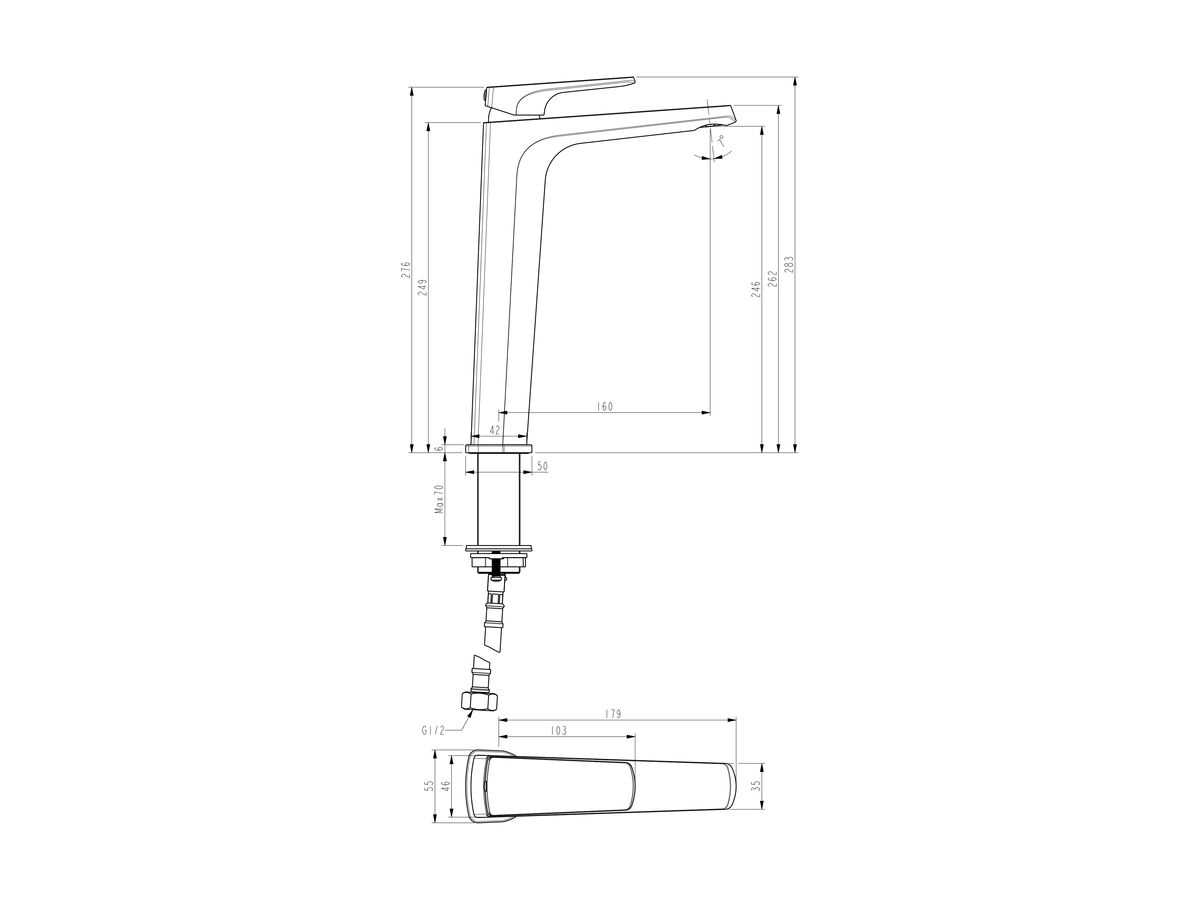

Size and Dimensions
Backplate Height
6 mm
Backplate Width
50 mm
Clearance
246 mm
Height
283 mm
Reach
160 mm
General Information
Mounting
Hob
Outlet Movement
Fixed
Outlet Shape
Straight
Product Type
Hi Rise Basin Mixer
Recommended Use
Domestic
Tapware Handle Type
Lever Handle
Colour and Finish
Colour
Chrome
Finish
Polished
Technical Information
Cartridge Type
35mm Ceramic Disc
Min Continuous Working Pressure
35 kPa
Max Continuous Working Pressure
500 kPa
Max Continuous Working Temperature
65 deg C
WELS Information
Star Rating
4 Star
Water Consumption
6.5 ltr/min
Hot Water Unit Suitability
Gravity Feed
No
Storage Tank
Yes
Continuous Flow
Yes
Warranty
Replacement Only - Domestic Use
10 Years
Replacement Only - Commercial Use
2 Years
Spare Parts & Labour - Domestic Use
10 Years
Spare Parts & Labour - Commercial Use
2 Years
Warranty Information
For full warranty terms and conditions please refer to the Tide Warranty document
Learn about our
Product Quality Guarantee
Tide (NZ)
View
Brochures
Tide (NZ)
View
Specification, Manuals & Installation
Specification Sheet - Tide Hi Rise Basin Mixer (4 Star)
View
Warranty
Warranty - Tide
View
Tide Hi Rise Basin Mixer Chrome (4 Star)
