Mizu Bloc MK2 Wall Basin Mixer Tap Set Chrome (4 Star)

Product code: 9508072

View Product Specifications

Mizu Bloc MK2

Mizu Bloc embraces adventurous geometric forms to bring structure to the bathroom. Beautiful symmetry and proportion defines the Mizu Bloc MK2 Wall Basin Mixer Set. The solid brass construction, timeless chrome finish and strong lines complete the modern bathroom space.

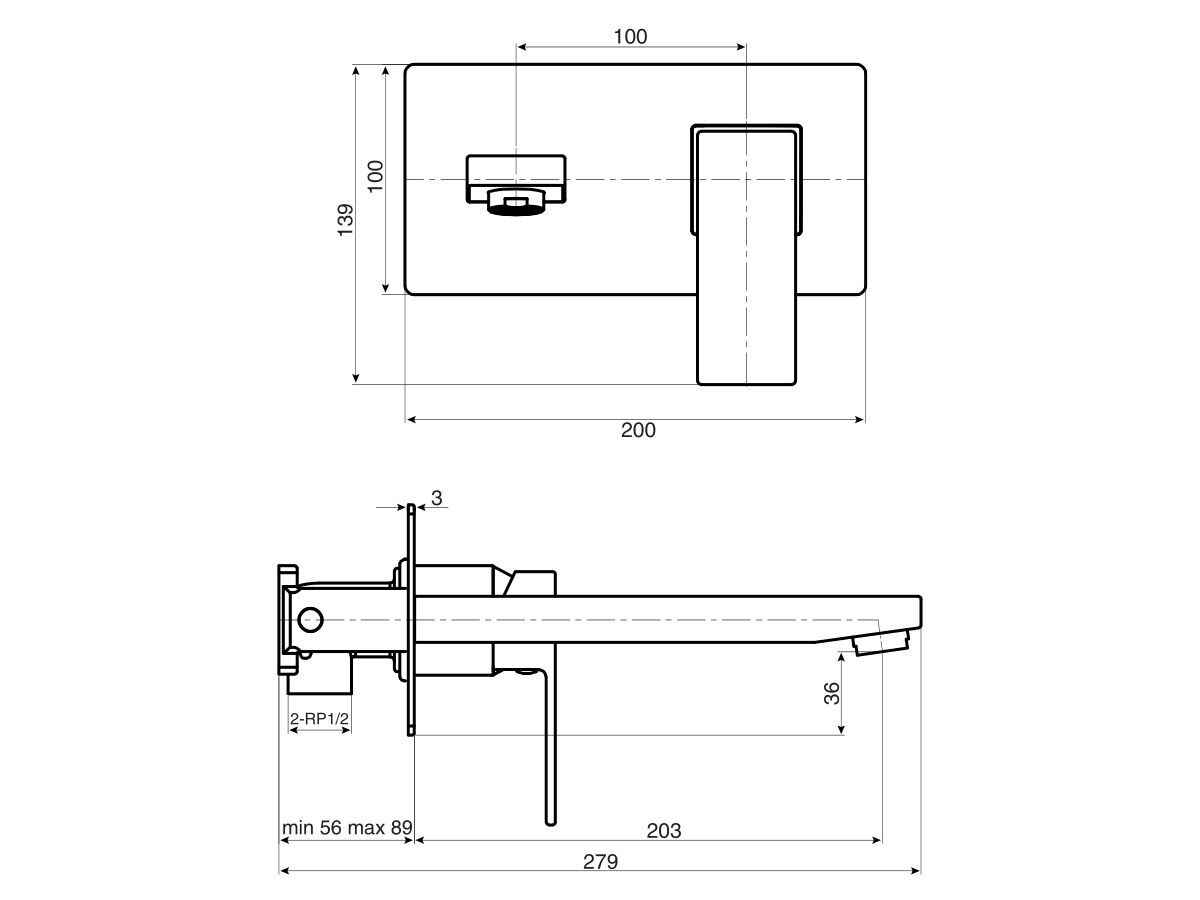

Size and Dimensions

Backplate Height	3 mm
Backplate Length	100 mm
Backplate Width	200 mm
Clearance	36 mm
Cartridge Size	35 mm
Handle Length	110 mm
Height	139 mm
Reach	203 mm

General Information

Handle Type	Lever
Mounting	Wall Mounted
Outlet Movement	Fixed
Product Shape	Square
Tapware Handle Type	Lever Handle

Colour and Finish

Colour	Chrome
Colour Variations (Prices May Vary)	Chrome, Matte Black

Material

Material	Brass

Technical Information

Cartridge Type	35mm Ceramic Disc
Min Continuous Working Pressure	150 kPa
Max Continuous Working Pressure	500 kPa
Max Continuous Working Temperature	80 deg C
Min Continuous Working Temperature	1 deg C
Max. Recommended Working Pressure	500 kPa
Min Recommended Working Pressure	150 kPa
Retrofit Suitability	Suitable

WELS

Rating	4 Star Rating
Measure	7.5 Litres Per Minute

Warranty

Cartridge Replacement Only	10 Years
Warranty - Domestic Use	10 Years
Spare Parts and Labour	12 Months
Warranty - Commercial Use	12 Months
Warranty Information	For full warranty terms and conditions please refer to the Mizu Warranty document
