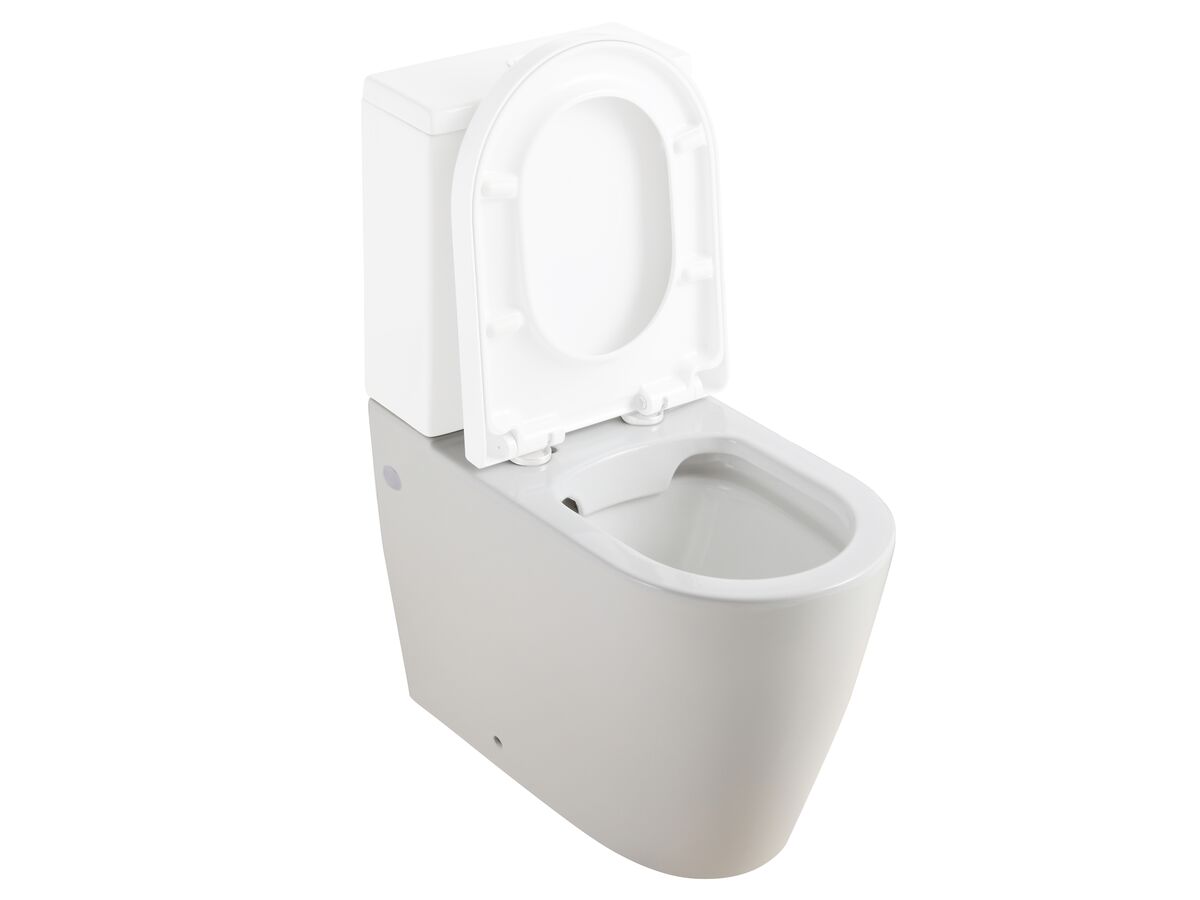

Kado Lux Close Coupled Back to Wall Rimless Overheight Bottom Inlet Pan (4 Star) from Reece

Recommended Use	Commercial, Domestic & Hotel
Toilet Configuration	Back to Wall & Close Coupled
Rim Configuration	Rimless
Mounting	Floor
Overheight	Yes
Pan Outlet Type	P Trap & S Trap
Water Inlet Position	Bottom
Colour Category	White
Colour Finish	White
Primary Material	Vitreous China
Pan Material	Vitreous China
Width	360 mm
Pan Height	435 mm
Pan Projection	650 mm
Pan Width	360 mm
P Trap Setout	180 mm
S Trap Minimum Setout	95 mm
S Trap Maximum Setout	190 mm
Weight of Pan	37 kg
Cistern Included	No
WELS Registration Number	L06857
Water Efficiency Star Rating	4 Star
Average Litres per Flush	3.5 L
Full Flush	4.55 L
Half Flush	3.01 L

Domestic Use	10 Years
Commercial Use	1 Years
Spare Parts & Labour	1 Years
Warranty Information	For full warranty terms and conditions please refer to the Kado Warranty document
