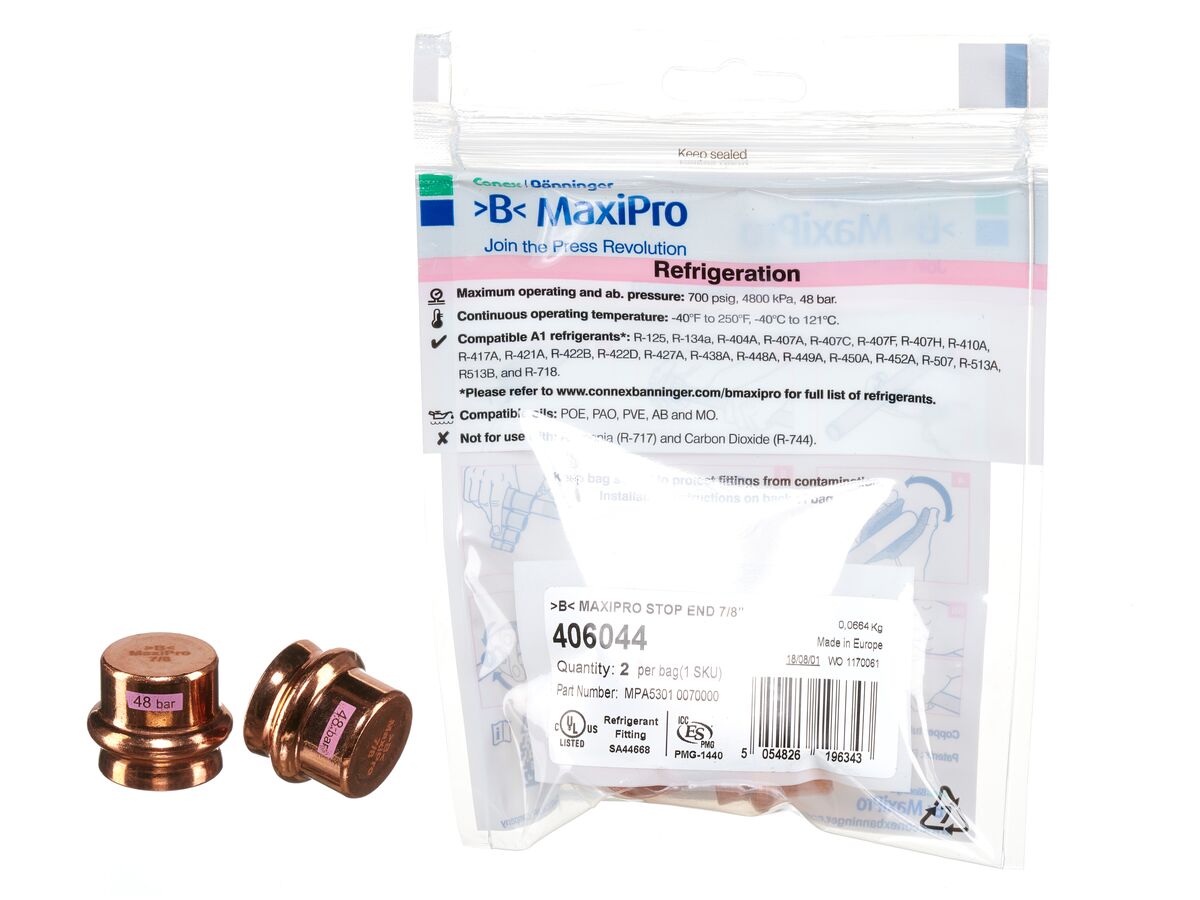

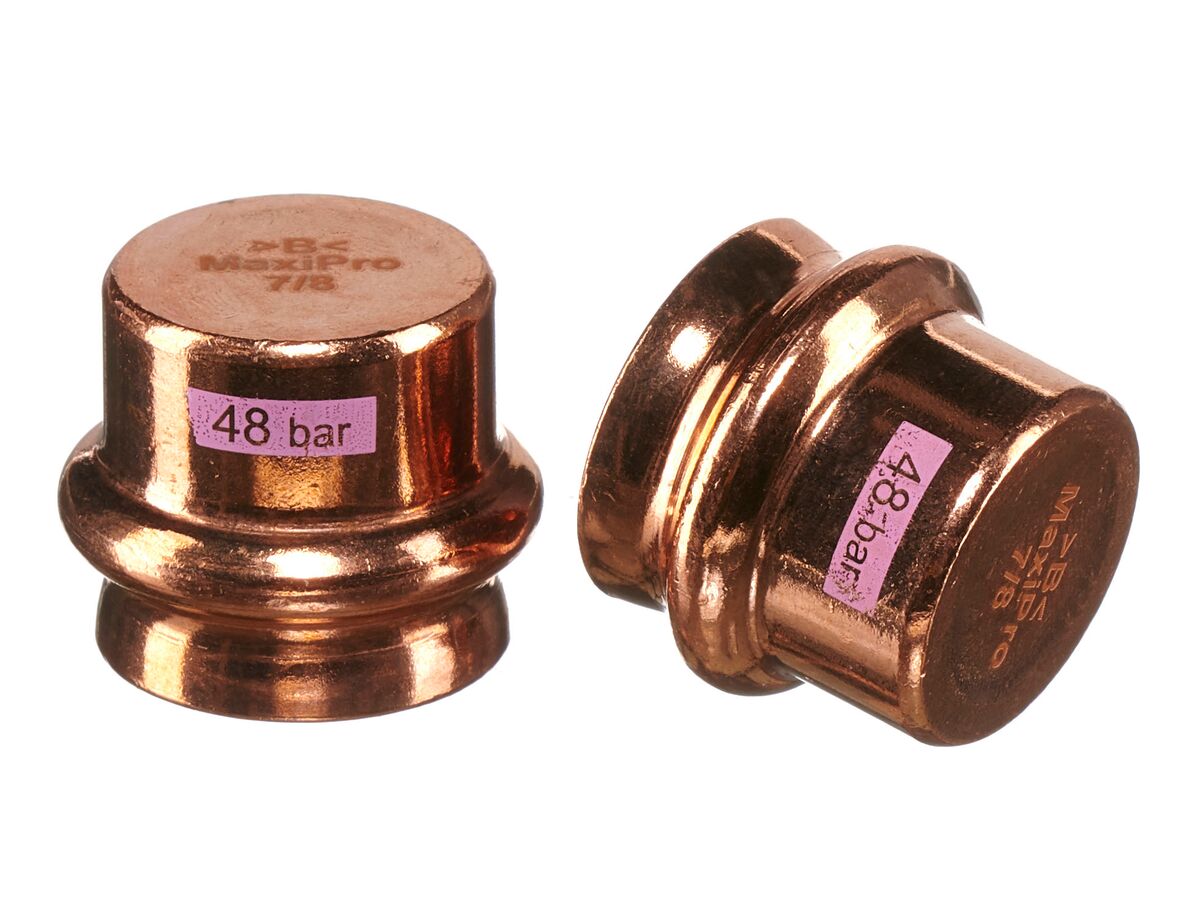

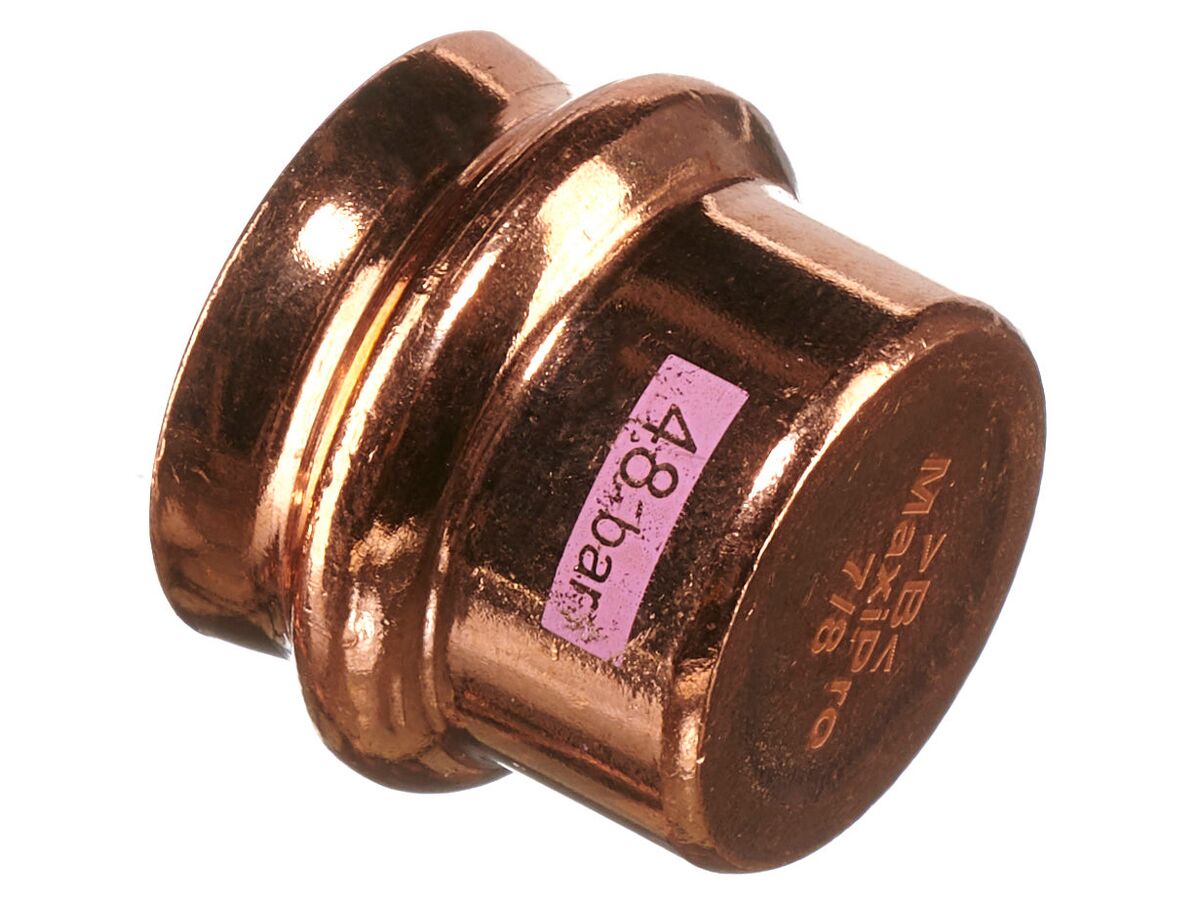

B-MaxiPro Stop End 7/8" (Bag of 2)

Product code: 406044

View Product Specifications

Conex Banninger >B< MaxiPro

>B< MaxiPro is an innovative press fitting system that provides a secure, permanent and leak-proof joint suitable for refrigeration and air conditioning applications.

Features	Flame free No nitrogen purge required 3-point-press system with secure, permanent joint ensures fitting cannot be tampered with Lead-in edge aids installation and protects O-ring from damage or displacement High pressure rating: 4800kPa Temperature rating: -40 deg C to 121 deg C Identifiable pink marking on fitting Fully certified and quality assured For further information refer to the >B< MaxiPro Technical Guide or www.conexbanninger.com.au
Application	Refrigerant
Pipe/Fitting Type	Cap
Primary Material	Copper
O-Ring Material	HNBR
Primary Nominal Size	7/8 "
Primary Connection Type	Crimp

Product Warranty	15 Years

Learn about our Product Quality Guarantee

Specification, Manuals & Installation

Conex B�nninger >B< MaxiPro Technical Guide View

Specification Sheet - >B< MaxiPro View

Warranty

Warranty - >B< MaxiPro Fittings View
